Due to the use of advanced microprocessor and unique EchoDiscovery echo processing technology, guided wave radar level meter can be applied to a variety of complex conditions.

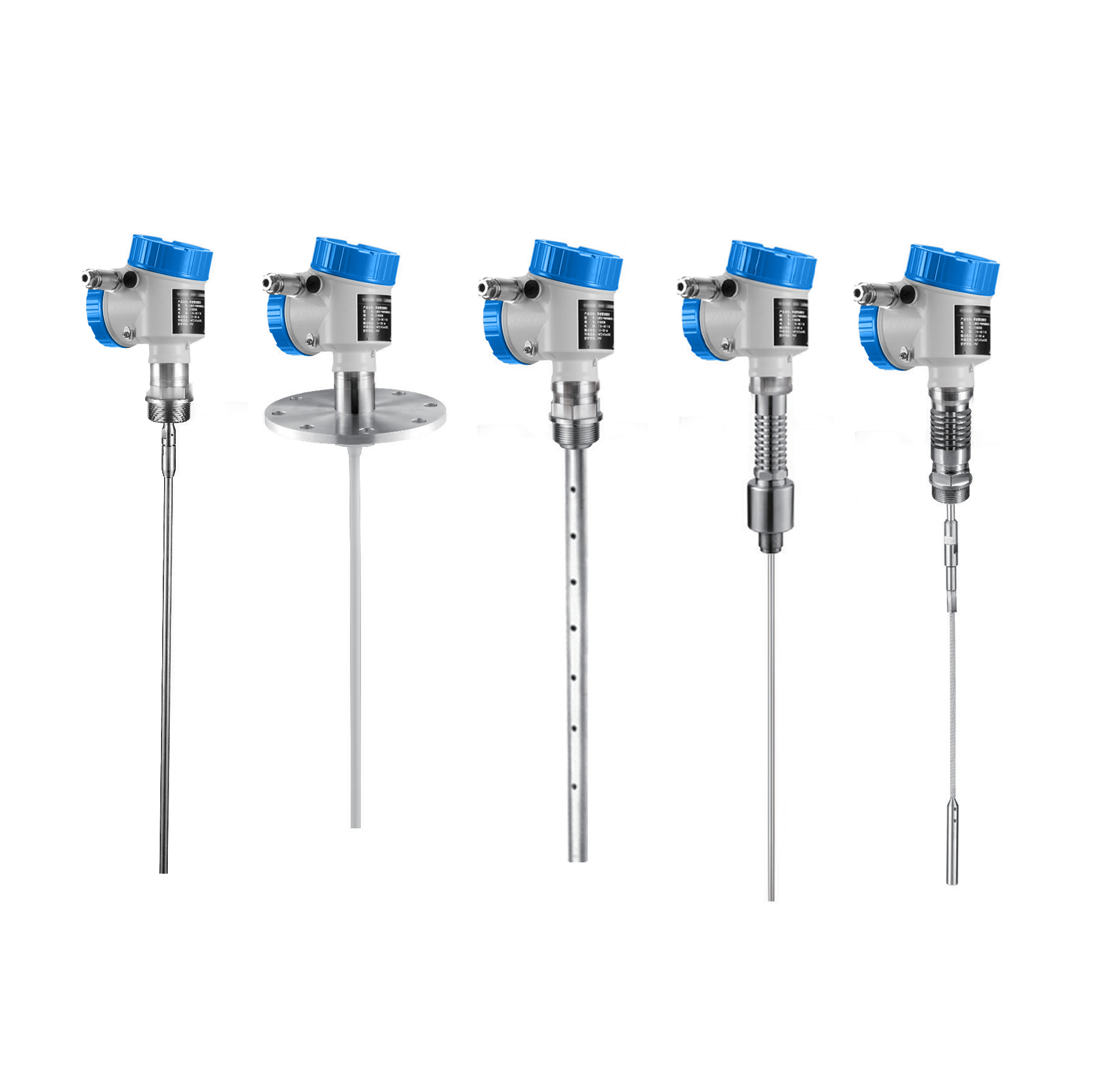

A variety of process connection methods and types of detection components make the LRD9 series guided wave radar level meter suitable for various complex conditions and applications. Such as: high temperature, high pressure and small dielectric constant media.
Pulse working mode, guided wave radar level meter transmission power is very low, can be installed in a variety of metal, non-metal containers, no harm to the human body and the environment.
Liquid and solid measurement, complex process conditions
Highly corrosive liquid media
small dielectric constant liquids, complex process conditions
high temperature and high pressure conditions
LRD901
Applications: Liquid and solid measurement, complex process conditions
Maximum range: cable: 30m/ rod: 6m
Accuracy: ±3mm
Process connection: G1½A /G2A /1½NPT
Probe rod/cable material: stainless steel 316L
Process temperature: (-40~150) ℃
Process pressure: (-0.1~4) MPa
Signal output: (4~20) mA/HART
Power source: two-wire system (DC24V) /
Four-wire system (DC 24V/AC 220V)
LRD902
Application: Highly corrosive liquid media
Maximum range: 6m
Accuracy: ±3mm
Process connection: PTFE flange
Probe rod material: stainless steel with PTFE
PTFE rod diameter: φ10mm
Process temperature: (-40~150)℃
Process pressure: (-0.1~1.6) MPa
Signal output: (4~20) mA/HART
Power source: two-wire system (DC24V) /
Four-wire system (DC 24V/AC 220V)
LRD903
Applications: Liquid measurement, especially small dielectric constant liquids, complex process conditions
Maximum range: 6m
Accuracy: ±3mm
Process connection: G1½A, G2A
Probe rod/cable material: stainless steel 316L/PTFE
Coaxial outer diameter: φ38mm
Process temperature: (-40~150) ℃
Process pressure: (-0.1~4) MPa
Signal output: (4~20) mA/HART
Power source: two-wire system (DC24V) /
Four-wire system (DC24V/AC 220V)
LRD904
Applications: liquid measurement, high temperature and high pressure conditions, complex process conditions
Maximum range: cable: 30m/ bar: 6m
Accuracy: ±3mm
Process connection: G1½A/G2A/1½NPT
Probe rod/cable material: stainless steel 316L/ ceramic
Process temperature: (-40 ~ 200)℃
Process pressure: (-0.1~4) MPa
Signal output: (4 ~ 20)mA/HART
Power source: two-wire system (DC24V) /
Four-wire system (DC 24V/AC 220V)
LRD905
Applications: liquid measurement, high temperature and high pressure conditions, complex process conditions
Maximum range: cable: 30m/ bar: 6m
Accuracy: ±3mm
Process connection: G1½A /G2A/1½NPT
Probe rod/cable material: stainless steel 316L/ ceramic
Process temperature: (-200~400) ℃
Process pressure: (vacuum ~40) MPa
Signal output: (4~20) mA/HART
Power source: two-wire system (DC24V) /
Four-wire system (DC 24V/AC 220V)
