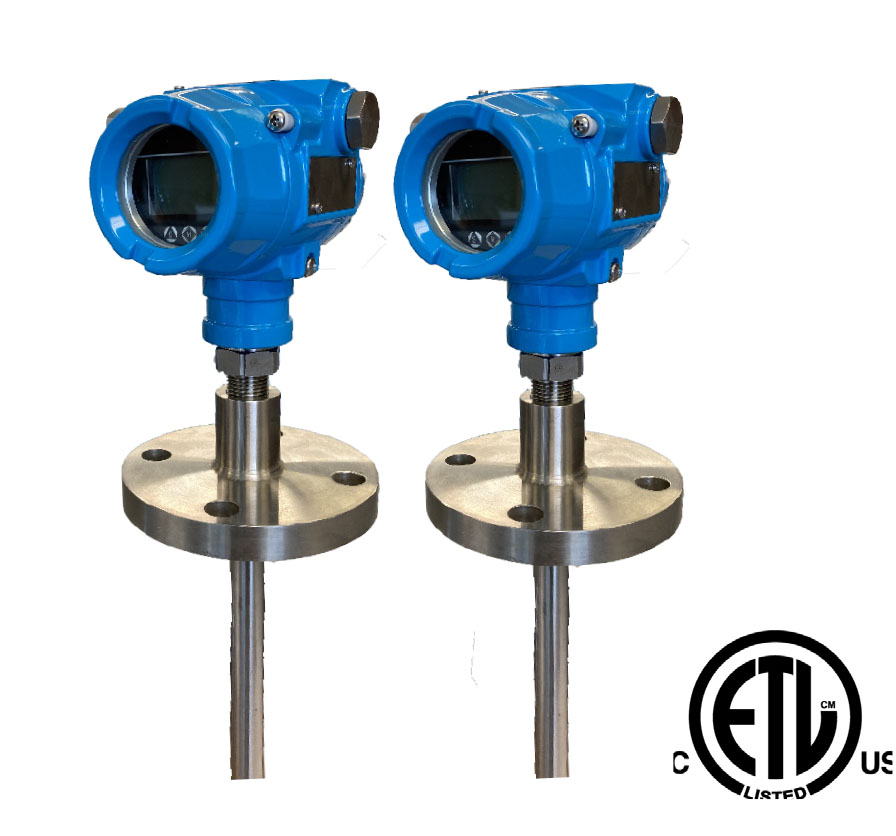

Integrated temperature transmitter with ASIC signalling transmitter
Explosion proof smart temperature transmitter for hazardous locations
-50 to 400°C (-58/752°F ) measure range
0.5% accuracy
Simple to operate 3-push button control
HART or Modbus communications available
Low power option available
Re-zero function for safe field calibration
10:1 rangeability allows for installation in any application
5 Year Warranty
TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil & Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements
output signal: 4/20 mA, 2-wire / V = 10-30 Vdc
4/20 mA + HART, 2-wire / V = 10.5/16.5-30 Vdc
1/5 Vdc, 3-wire / V = 12-30 Vdc
Modbus, 4-wire / V = 5/9-30 Vdc
sensor type: PT100 RTD
measuring range: -50/400°C (-58/752°F)
LCD display: LCD display (standard) or without LCD display (optional)
accuracy: 0.5% accuracy
stability: 0.05% or 0.1°C / year
temperature ranges: Working: -40/85°C (with display -20/70°C), -40/185°F (with display -4/158°F)
Storage: -40/100°C (with display -20/70°C), -40/212°F (with display -4/158°F)
Working Humidity: 0-95%
process connection: 1/2” NPTM, 1/2 GM or Flanged
housing: Rugged die-cast aluminum housing, painted blue
wetted parts: 316 SS, 304 SS
power consumption: </- 500 mW @ 24 VDC, 20.8 mA
protection class: EMI, ESD, RFI, reverse polarity protected
approval: Intertek for USA & Canada • Class I, Division 2, Groups A, B, C & D, T6, -40°C to 60°C
protection class: IP67
