Measuring insert

1xFe-CuNiJ,operatingtemperature -40 to +750℃

1xCu-CuNiT,operatingtemperature -40 to +350℃

1xNiCr-CuNiE,operatingtemperature -40 to +800℃

1xNiCr-NiAlK,operatingtemperature -40 to +1000℃

1xPt 13 Rh-PtR,operatingtemperature 0 to +1100℃

1xPt 10 Rh-PtS,operatingtemperature 600 to +1600℃

1xPt 30 Rh-Pt6RhB,operatingtemperature  600 to +1700℃

ClassII

2xFe-CuNiJ,operatingtemperature -40 to +750℃

2xCu-CuNiT,operatingtemperature -40 to +350℃

2xNiCr-CuNiE,operatingtemperature -40 to +800℃

2xNiCr-NiAlK,operatingtemperature -40 to +1000℃

2xPt 13 Rh-PtR,operatingtemperature 0 to +1100℃

2xPt 10 Rh-PtS,operatingtemperature 600 to +1600℃

2xPt 30 Rh-Pt6RhB,operatingtemperature  600 to +1700℃

ClassII

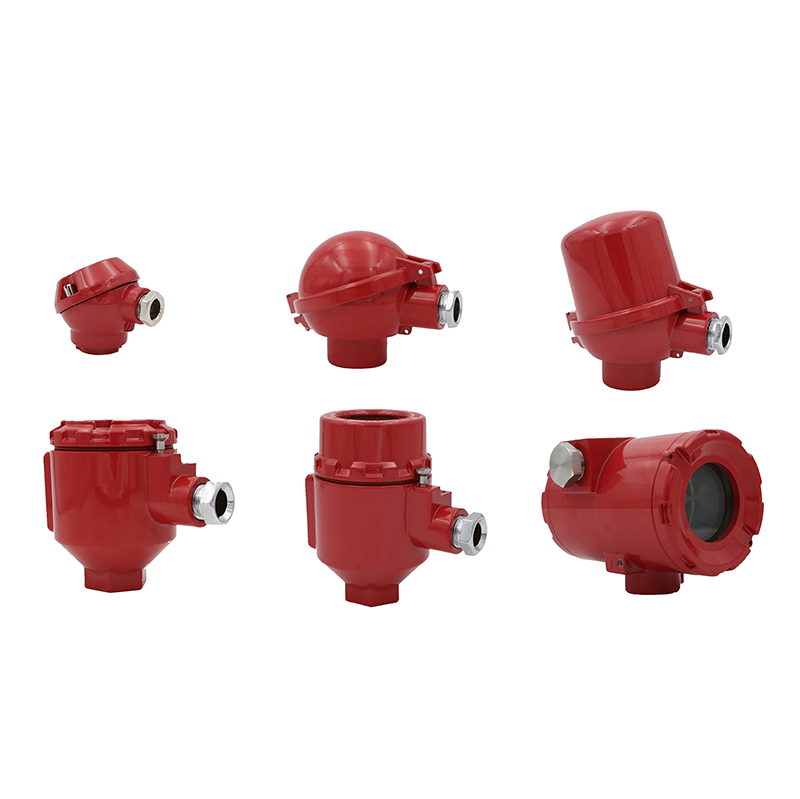

terminal head

Aluminiumboxandtemperaturetransmittercanbeinstalledin JISstandard

Explosion-proofaluminiumbox (EExdIICT5)

Explosion-proofstainlesssteelbox (EExdIICT6)

FielddiaplayLED/LCDExplosion-prooftemperaturetransmitters

Caution: reduced ambient temperature when using transmitters

process connection

Without thermowell

Thermowell with threaded process connection

Thermowell with flanged process connection

Thermowell with sanitary type process connection

Please refer to catalogues of thermowells
